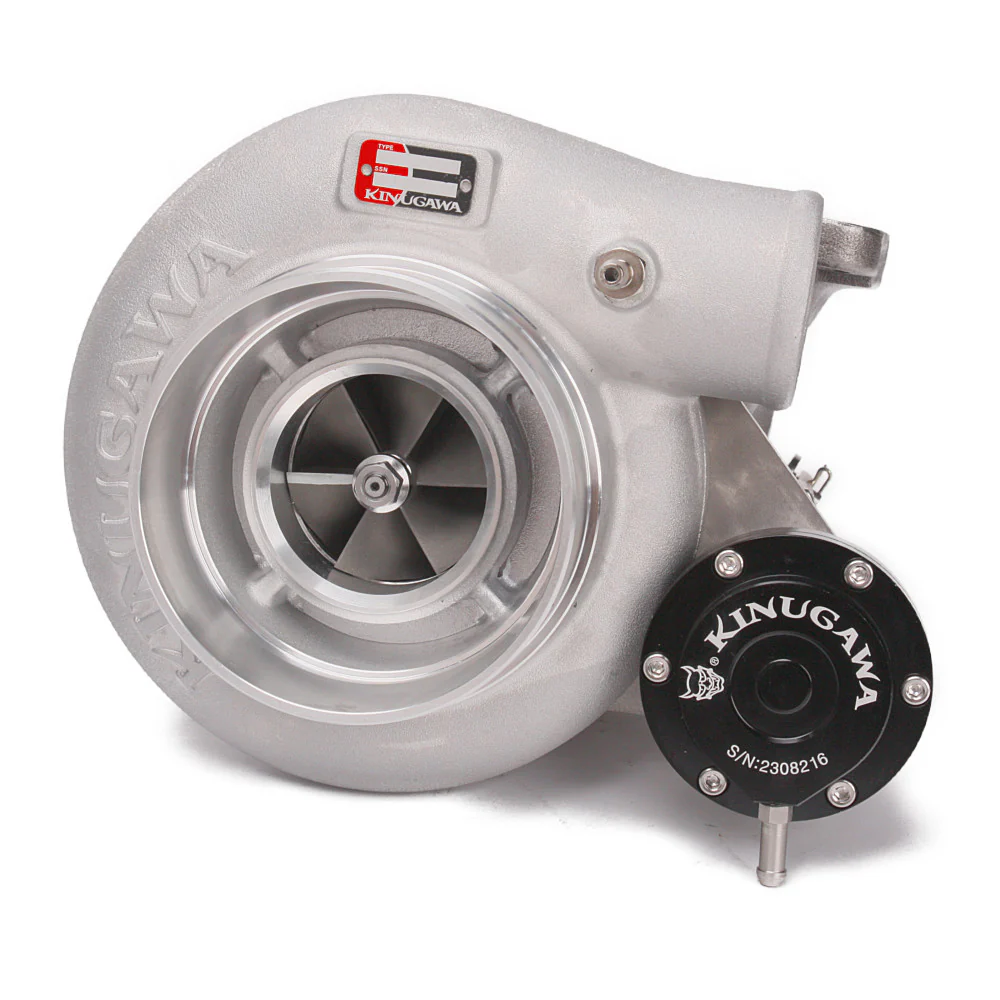

Kinugawa Turbo 4" Anti-Surge TD05H-18G 6cm Bolt-on for Nissan Patrol TD42 Low Mount Oil-Cooled
Kinugawa Turbo 4" Anti-Surge TD05H-18G 6cm Bolt-on for Nissan Patrol TD42 Low Mount Oil-Cooled
Application
- Fits for Nissan TD42 Patrol Safari GR GQÂ Y60, GU Y61 TD42T engine
- Fits for Radius Fabrications TD42 Low Mount Turbo Manifold comes with a T3 turbo flange.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
 Â
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
 Â
CHRA Size
- TD05H-18G
 Â
 Â
Wheels Spec
- Compactor wheel: 50.3 / 68.0 mm (The 6+6 blade type is better for low-end torque, and the 11+0 is for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 4" anti-surge
- Outlet: 2"
Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: TD42 bolt-on to the stock dump pipe
- Wastegate: internal gated
- Inlet: 4" anti-surge
- Outlet: 2"
Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: TD42 bolt-on to the stock dump pipe
- Wastegate: internal gated
Bearing Type
- Journal bearing system with 360-degree thrust bearing kit
Cooling Type
- Oil cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The set includes
- 1 x Oil supply set
- 1 x T3 gasket
- 1 x TD42 Turbine outlet gasket
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag
Install Kit Instruciton
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo System
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
Select Model
Select Compressor Wheel
Select Turbine Wheel
From $346.15
Original: $989.00
-65%Kinugawa Turbo 4" Anti-Surge TD05H-18G 6cm Bolt-on for Nissan Patrol TD42 Low Mount Oil-Cooled—
$989.00
$346.15
Description
Application
- Fits for Nissan TD42 Patrol Safari GR GQÂ Y60, GU Y61 TD42T engine
- Fits for Radius Fabrications TD42 Low Mount Turbo Manifold comes with a T3 turbo flange.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
 Â
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
 Â
CHRA Size
- TD05H-18G
 Â
 Â
Wheels Spec
- Compactor wheel: 50.3 / 68.0 mm (The 6+6 blade type is better for low-end torque, and the 11+0 is for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 4" anti-surge
- Outlet: 2"
Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: TD42 bolt-on to the stock dump pipe
- Wastegate: internal gated
- Inlet: 4" anti-surge
- Outlet: 2"
Turbine Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: TD42 bolt-on to the stock dump pipe
- Wastegate: internal gated
Bearing Type
- Journal bearing system with 360-degree thrust bearing kit
Cooling Type
- Oil cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The set includes
- 1 x Oil supply set
- 1 x T3 gasket
- 1 x TD42 Turbine outlet gasket
- 1 x Turbocharger
- 1 x Kinugawa Balance Report with an Anti-counterfeit Tag
Install Kit Instruciton
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo System
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
