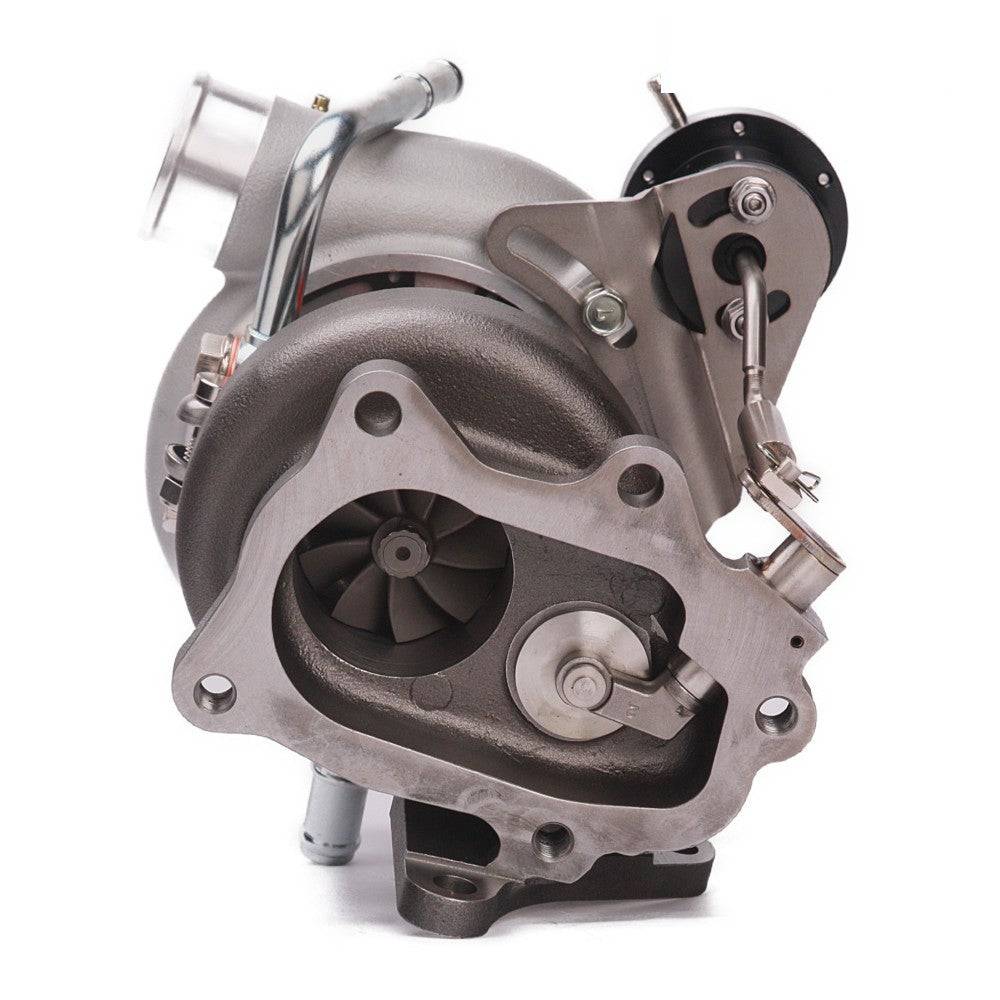

Kinugawa Turbo Ball Bearing 2.25" TD06SL2-20G for Subaru Impreza WRX STI 98-08
Application
-For SUBARU 98 ~ 08 EJ20 EJ25 WRX TD04L turbocharger
-For SUBARU ~ now EJ20 EJ25 STI for IHI RHF55 RHF5HB Turbocharger.
-It can replace TD04L WRX turbo, for IHI VF30, vf35 ... turbo directly without modification.
 Â
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
 Â
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD06SL2-20G
Wheels Spec
- Compressor wheel: 52.3 / 68.0 mm (6+6 blades for low-end torque and 11+0 blades for top-end speed)
- Turbine wheel: 61 / 54.1 mm (9 blades STS. Click here to learn more about STS technology.↗)
 Â
Compressor Housing
- Nozzle area: AR.57
- Inlet: 2.25"
- Outlet: 2"
- Nozzle area: AR.57
- Inlet: 2.25"
- Outlet: 2"
Turbine Housing
- Nozzle area: 7cm / AR.49; 8cm / AR.57; 10cm / AR.73
- Inlet: Subaru single scroll
- Outlet: Subaru single scroll
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
- Inlet: Subaru single scroll
- Outlet: Subaru single scroll
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and Water Cooling System
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The Set Includes
- 1 x oil supply kit
- 1 x water supply and return pipe kit
- 1 x return oil pipe kit
- 1 x turbine inlet and outlet gasket
- 5 x studs and nuts
- 1 x Turbocharger
- 1 x Turbocharger
- 1 x Balance Report with Anti-Counterfeit TagÂ
Situation
- Brand New
- Full balance from SCHENK MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
Select Compressor Wheel
Select Turbine Wheel
Select Turbine Housing
From $461.65
Original: $1,319.00
-65%Kinugawa Turbo Ball Bearing 2.25" TD06SL2-20G for Subaru Impreza WRX STI 98-08—
$1,319.00
$461.65
Description
Application
-For SUBARU 98 ~ 08 EJ20 EJ25 WRX TD04L turbocharger
-For SUBARU ~ now EJ20 EJ25 STI for IHI RHF55 RHF5HB Turbocharger.
-It can replace TD04L WRX turbo, for IHI VF30, vf35 ... turbo directly without modification.
 Â
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
 Â
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD06SL2-20G
Wheels Spec
- Compressor wheel: 52.3 / 68.0 mm (6+6 blades for low-end torque and 11+0 blades for top-end speed)
- Turbine wheel: 61 / 54.1 mm (9 blades STS. Click here to learn more about STS technology.↗)
 Â
Compressor Housing
- Nozzle area: AR.57
- Inlet: 2.25"
- Outlet: 2"
- Nozzle area: AR.57
- Inlet: 2.25"
- Outlet: 2"
Turbine Housing
- Nozzle area: 7cm / AR.49; 8cm / AR.57; 10cm / AR.73
- Inlet: Subaru single scroll
- Outlet: Subaru single scroll
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
- Inlet: Subaru single scroll
- Outlet: Subaru single scroll
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and Water Cooling System
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
The Set Includes
- 1 x oil supply kit
- 1 x water supply and return pipe kit
- 1 x return oil pipe kit
- 1 x turbine inlet and outlet gasket
- 5 x studs and nuts
- 1 x Turbocharger
- 1 x Turbocharger
- 1 x Balance Report with Anti-Counterfeit TagÂ
Situation
- Brand New
- Full balance from SCHENK MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
