Kinugawa Turbo Ball Bearing 3" Anti-Surge TD05H-18G 7cm for Toyota Supra MK3 7MGTE 7M-GTE MK3 MA70

Kinugawa Turbo Ball Bearing 3" Anti-Surge TD05H-18G 7cm for Toyota Supra MK3 7MGTE 7M-GTE MK3 MA70

Application
- 1986 – 1992: Toyota Supra MK3 MA70 (7M-GTE)
- 1986 – 1991: Toyota Soarer (7M-GTE)
- Replace and upgrade stock 17201-42020 turbo.

 The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.

CHRA Size
- TD05H-18G

Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm STS ( Click here to learn more about STS technology.)

Compressor Housing
- Nozzle area: AR.60
- Inlet: 3" Anti-Surge
- Outlet: 2"

Turbine Housing
- Nozzle area: 7cm / AR.49 (faster spool response than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Bolt-on into the stock manifold inlet and downpipe

Bearing Type
- Dual ceramic ball bearing
Kinugawa Turbo STS Advanced Ball Bearing Technology
Cooling Type
- Oil and water cooling system

Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

The Set Includes
-1 x Turbocharger
-1 x Oil supply set
-1 x water supply and return pipe set
-1 x Return Oil Pipeline
-1 x turbine inlet/outlet gasket
-1 x Balance Report with Anti-Counterfeit Tag↗

Install Kit Instruction

Situation
- Brand New
- Full balance from SCHENK MBRS 110 Germany

Provider
- Kinugawa Turbo Systems

Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.

Select Compressor Wheel
Select Turbine Wheel
From $461.65

Original: $1,319.00

-65%
Kinugawa Turbo Ball Bearing 3" Anti-Surge TD05H-18G 7cm for Toyota Supra MK3 7MGTE 7M-GTE MK3 MA70—

$1,319.00

$461.65
Product image 1
Product image 2
Product image 3

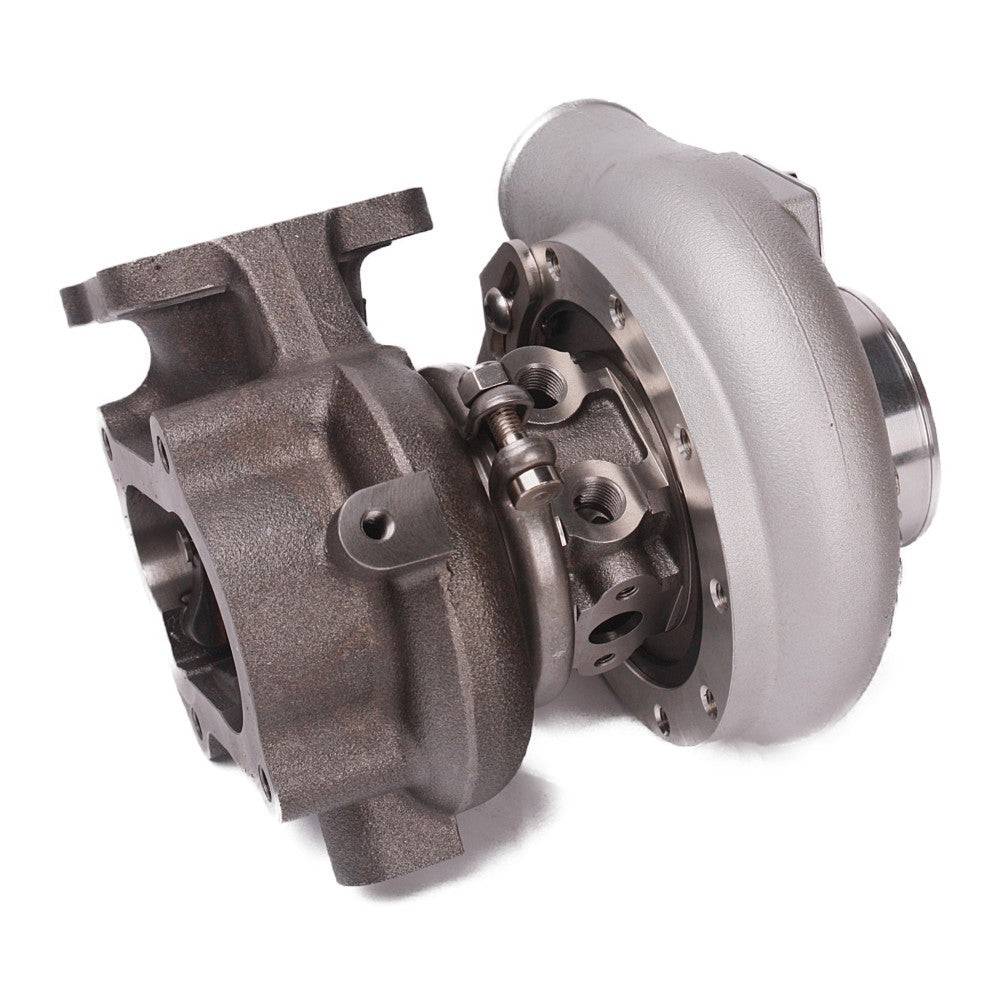

Product image 4
Product image 5

Description

Application
- 1986 – 1992: Toyota Supra MK3 MA70 (7M-GTE)
- 1986 – 1991: Toyota Soarer (7M-GTE)
- Replace and upgrade stock 17201-42020 turbo.

 The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.

CHRA Size
- TD05H-18G

Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm STS ( Click here to learn more about STS technology.)

Compressor Housing
- Nozzle area: AR.60
- Inlet: 3" Anti-Surge
- Outlet: 2"

Turbine Housing
- Nozzle area: 7cm / AR.49 (faster spool response than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Bolt-on into the stock manifold inlet and downpipe

Bearing Type
- Dual ceramic ball bearing
Kinugawa Turbo STS Advanced Ball Bearing Technology
Cooling Type
- Oil and water cooling system

Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

The Set Includes
-1 x Turbocharger
-1 x Oil supply set
-1 x water supply and return pipe set
-1 x Return Oil Pipeline
-1 x turbine inlet/outlet gasket
-1 x Balance Report with Anti-Counterfeit Tag↗

Install Kit Instruction

Situation
- Brand New
- Full balance from SCHENK MBRS 110 Germany

Provider
- Kinugawa Turbo Systems

Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
